LCWFG 300-5600mm Lauxes Aluminium Standard Floor Grate Drain Any Size Indoor Outdoor

LCWFG+LCFG-C100S

LCWFG 300-5600mm Lauxes Aluminium Standard Floor Grate Drain Any Size Indoor Outdoor

$36.00

Download Product Specifications

Tile Insert Shower Floor Grate 300 - 5600mm Waste Drain LAUXES Silver ---LCWFG Series

2Q==

Specifications:

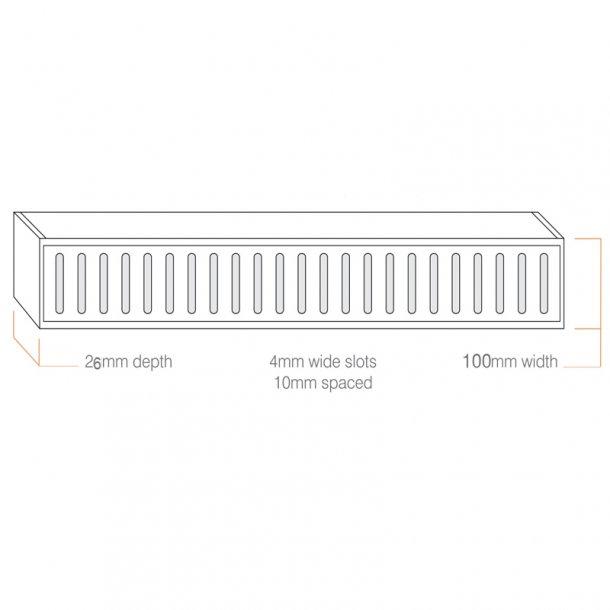

Size (mm): (300-5600)L x 100W x 26H
4 Waste Sizes: 40/50/72/80mm
Color: Silver
Rust proof
Lightweight

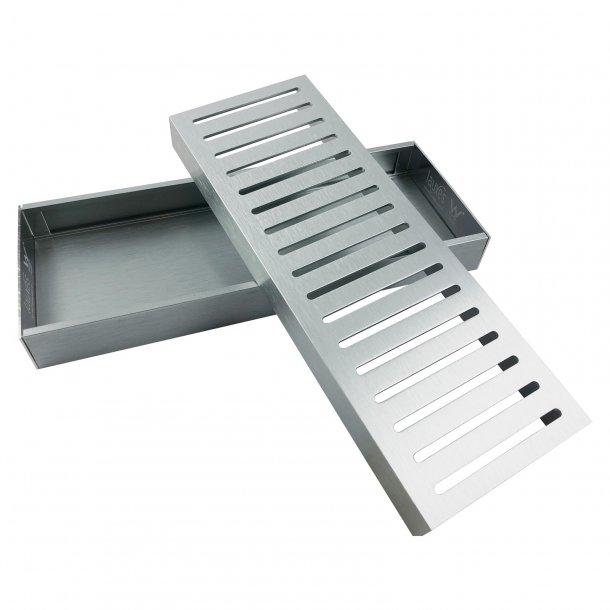

Top grate easily removed for cleaning
Different colour choices to suit application
Easy to cut to desired length
No welding required
No major plumbing involved as waste can be positioned anywhere along the bottom tray
Perfect use for indoor/outdoor applications
Lifetime: Rustproof Warranty

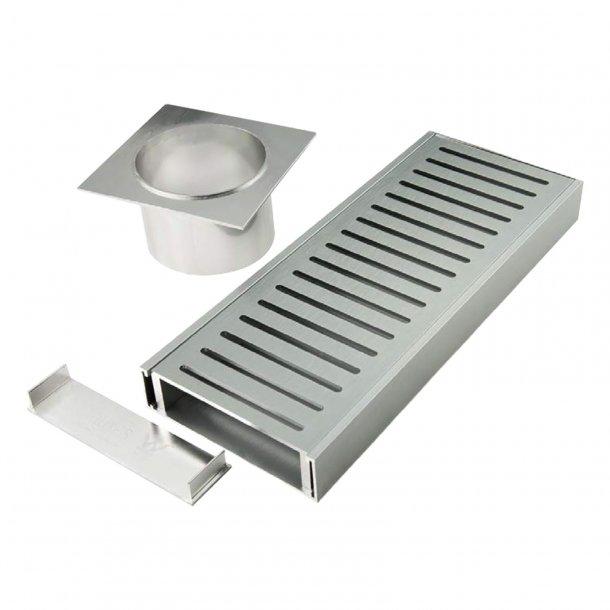

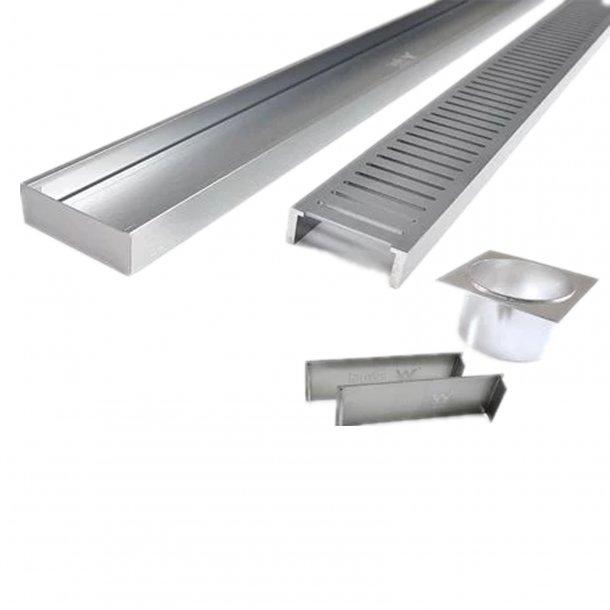

Package Contents:
1 x Floor Drain
1 x Waste
1 pair of end cap

Cutting & Assembly Instructions:

For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Collections: BATHROOM, DRAINAGE, Floor Waste, SHOWER, Shower Grate
