Specifications:

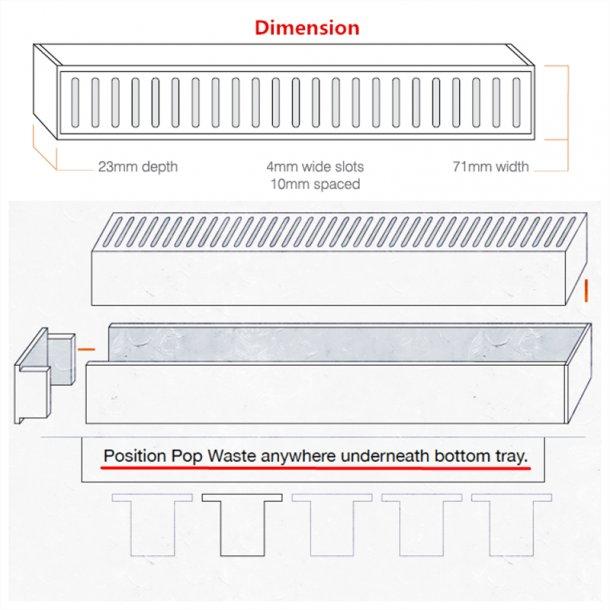

- Size (mm): (300-5600)L x 70W x 23H
- 2 Waste Sizes: 40/50mm
- Color: Black
- Rust proof
- Lightweight

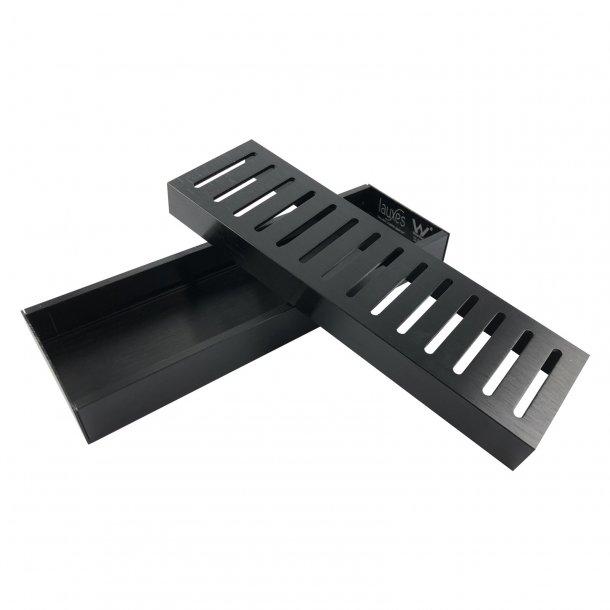

- Top grate easily removed for cleaning
- Different colour choices to suit application
- Easy to cut to desired length
- No welding required
- No major plumbing involved as waste can be positioned anywhere along the bottom tray
- Perfect use for indoor applications
- Lifetime: Rustproof Warranty
- Package Contents:
- 1 x Floor Drain
- 1 x Waste
- 1 pair of end cap
Cutting & Assembly Instructions:
For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
- 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
- 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
- 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
- 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
- 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
